Product Description
Size(mm) 2000 2200
Max slitting width (mm) 2000 2200
Min slitting width (mm) 200
Min scoring width (mm) 0(200)
Scoring height (mm) 0-12
Blade (mm) φ260×158×1.3
Blade & Scoring Composed Type 5 knife 8 line / 6 knife 10 line
Power (KW) 24kw
Machine dimension (mm) 4200X2200X2340 4600X2200X2340
Product Desplay

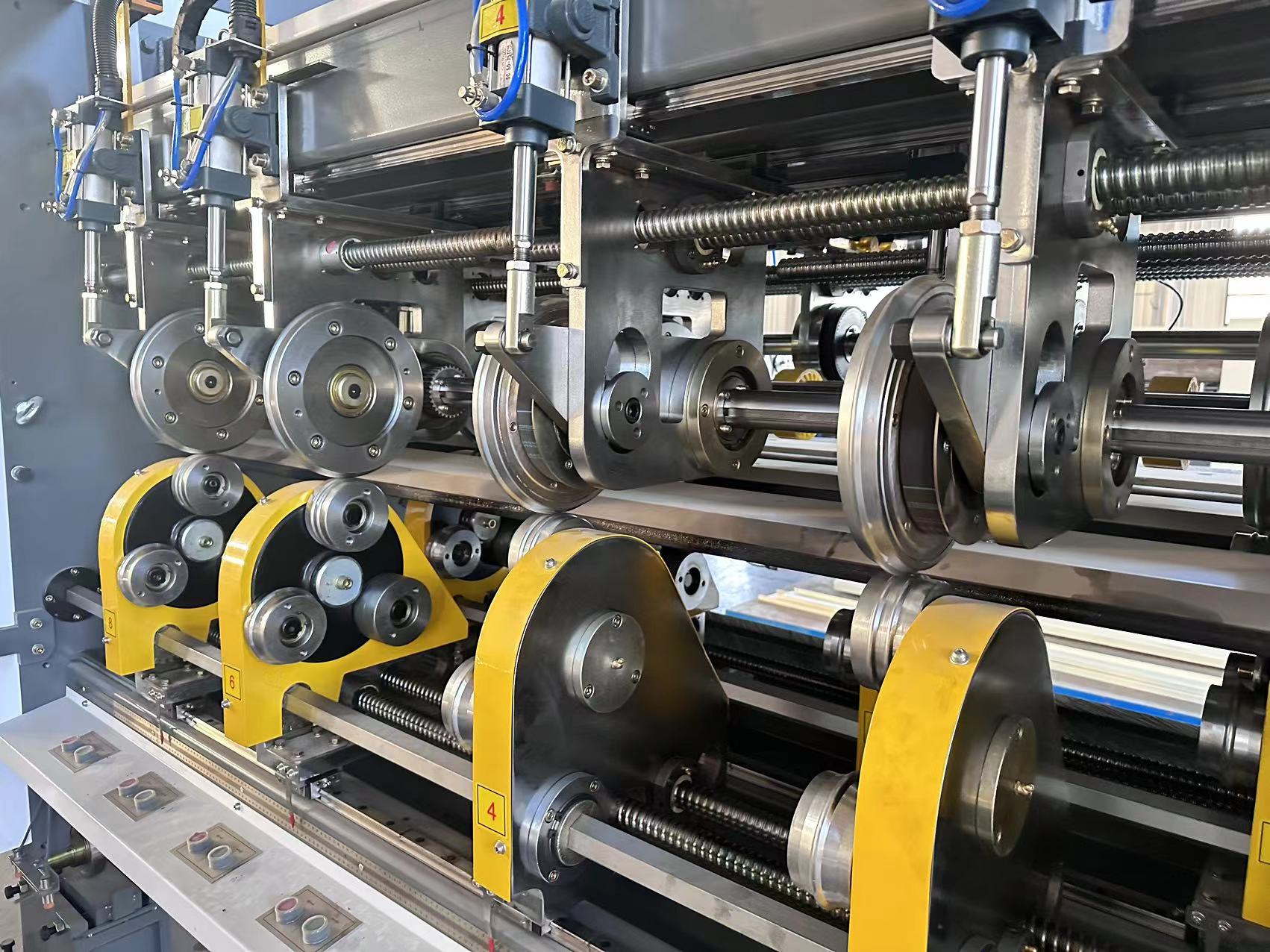

The creasing line type is upper
single line, lower second line (wide) + second line (narrow) + flat wheel, and the lower three line types can be automatically converted, suitable for creasing of
cardboard with different thicknesses.

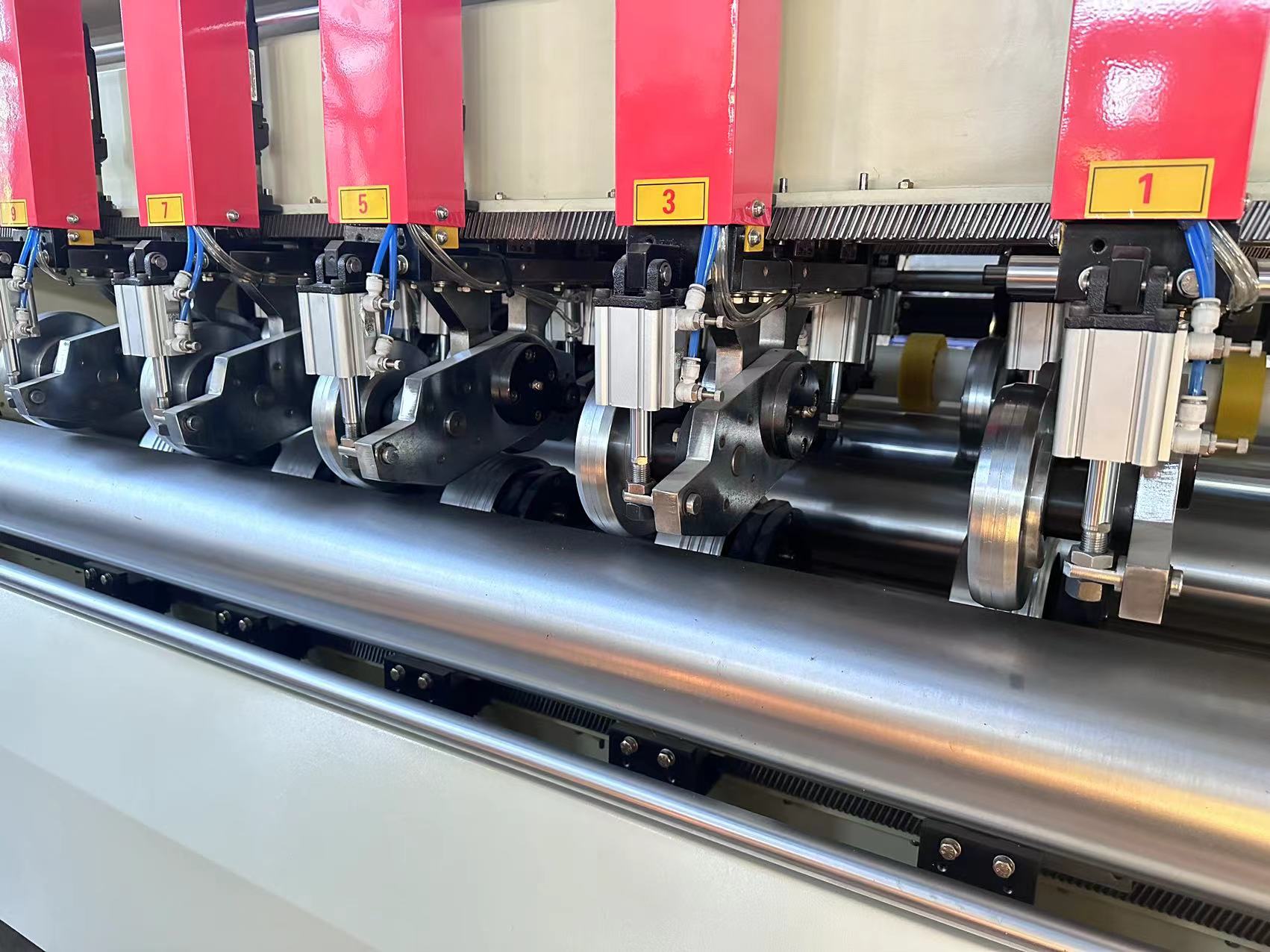

The front and rear rows of lower pressure lines adopt synchronous electric conversion,
which is convenient and quick.
Servo Motor Adjustment
Separate operation cabinet,touch screen to
enter and change orders
Automatic machine traverse, can fine-tune the
error between the machine and the production line
Service
Quality control department are
specially responsible for quality in each process
We have been kept providing high quality products by introducing advanced technologies for over 20 years, and our products are also widely exported to many different
countries including Russia, the Middle East, Africa, Southeast Asia, EU, etc, which earned us a high reputation among the customers.
TM online for 24 hours, also contact by email, skype, MSN, whatsapp, etc.
To solve the problems with videos/pictures.
One year warranty for spare parts change.
